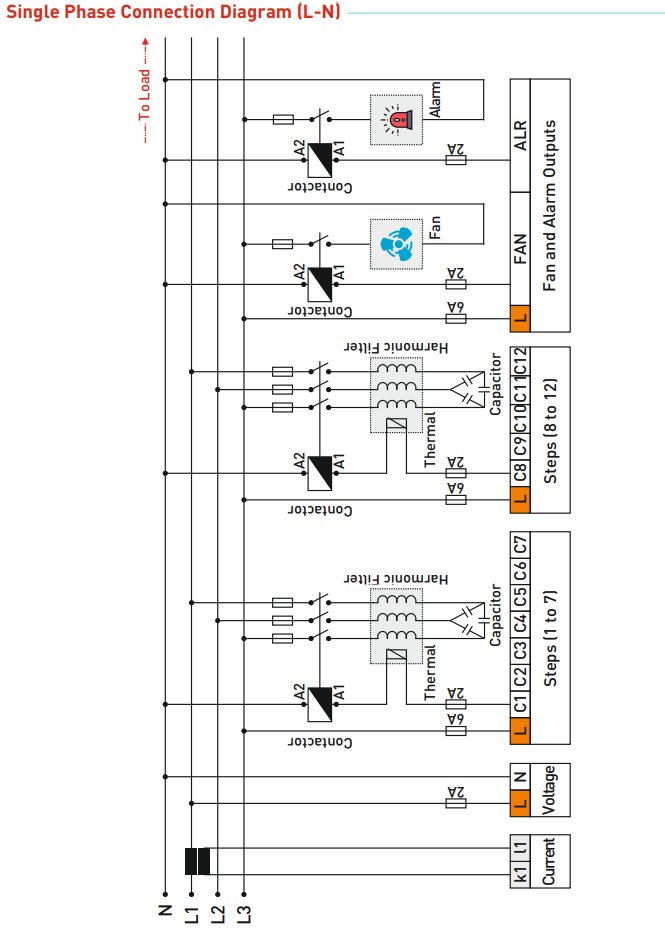

12 steps Single-phase connection Power factor controller for power factor control in networks with symmetrical loads (TENSE)

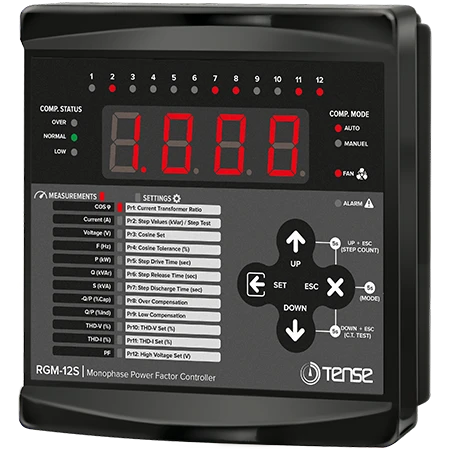

The RGM-12S reactive power control relay is designed to reduce inductive power that is not used by loads but is taken from the grid. When inductive reactive power is taken from the grid, the relay intervenes by activating the capacitors with the appropriate value. In this way, the program tries to bring the Cos fi value to the desired level.
7 Different power factor compensation programs
Manual power factor compensation programs
Can only compensate inductive systems
Automatic step measurement
The drive, release and discharge times of the stages can be set
Harmonic alarm values for voltage and current can be set
Alarm values for over and under compensation can be set
Alarm output for voltage, harmonic voltage/current, over and under compensation
-
Voltage, current and frequency values can be monitored
Active power, reactive power and apparent power values can be monitored
Up to the 15th harmonic THD-I can be monitored
Up to the 15th harmonic THD-V can be monitored
The cosine value can be monitored
Power factor value can be monitored
Automatic fan output
Equal aging in stages (in some compensation programs)
