Plastim

Tak fan, electrical panel fan, 970m3/h, 230VAC, 364x364x107mm, IP54, PTS6000

In stock - 7 items available
SKU: PTS6000
4 273 kr incl. VAT

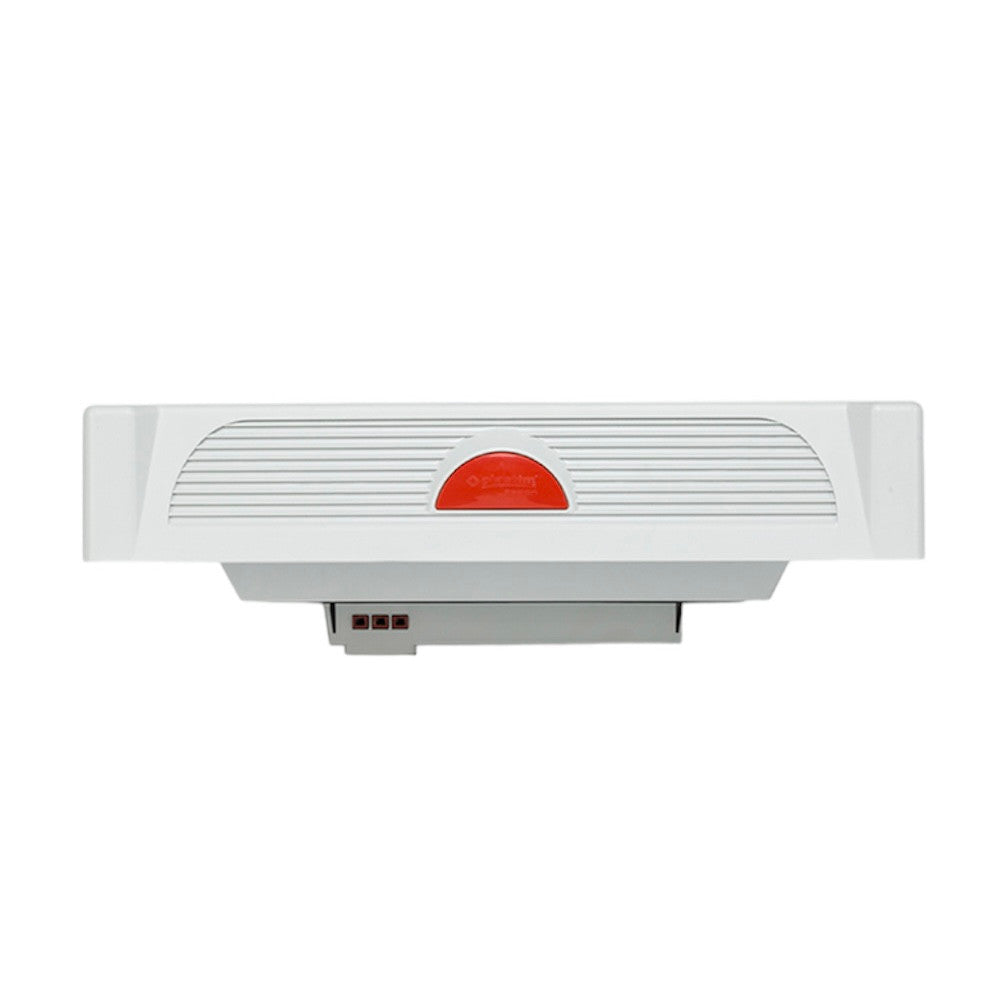

Fan in housing for installation on the electrical panel roof, PTS6000, PLASTIM (Türkiye)

This fan is intended for use in a microclimate system in a distribution board or automation panel and is usually used with a PTVT or PTHVT thermostat. It is installed on the roof of the cabinet, allowing excess warm air to be extracted from the cabinet volume as efficiently as possible.

Although the fans have the same external dimensions, they differ in terms of air volume and noise level.

  • External dimensions: 364x364x107 mm
  • Installation size: 178x178 mm
  • Airflow: 970 m3/h
  • Noise level: 72 (73) dB(A)
  • Bearings: Ball bearings
  • Lifetime: 50000 h
  • Operating voltage: 220-230VAC, 50/60Hz
  • Current consumption: 0.38/0.44 A
  • Rated power: 85/90 W
  • Electrical connection: 3-pole 2.5 mm2 terminal
  • Flow direction: Airflow is directed from inside to outside of the cabinet
  • Operating temperature: -10/+70 °C
  • Protection rating: IP54
  • Plastic material: UL94 V0 ABS Flame Retardant
  • Sealing: Polyurethane sealing
  • Color: RAL 7035
  • Weight: 3.16 kg
  • Installation: Quick fastening with clips

For automatic air exchange and temperature control with this fan, you need either a simple bimetal thermostat or a more complex temperature controller, both of which can be purchased on our website.
