Ceiling fan, electric central fan, 400m3/h, 230VAC, 364x364x107mm, IP54, PTS4000

In stock - 10 items available
SKU: PTS4000
3 043 kr incl. VAT

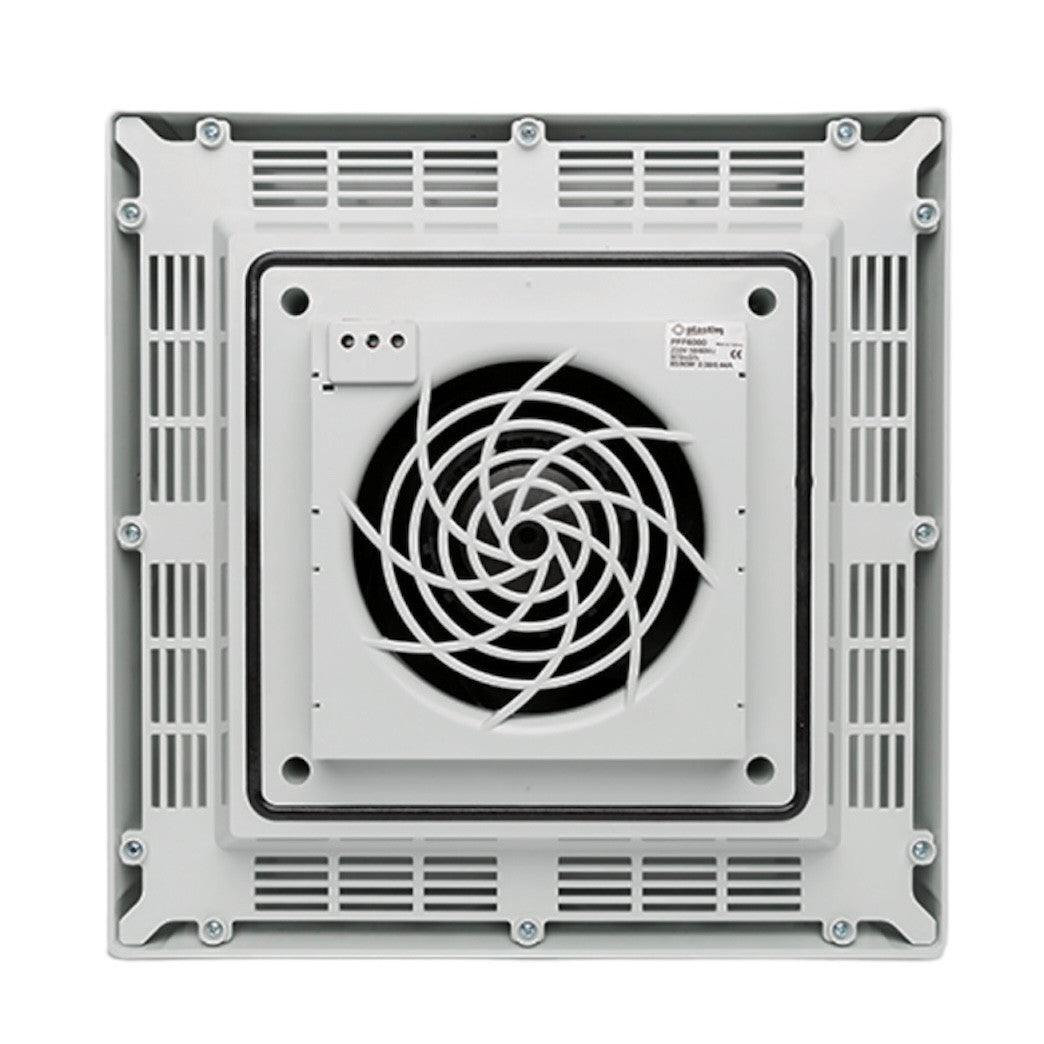

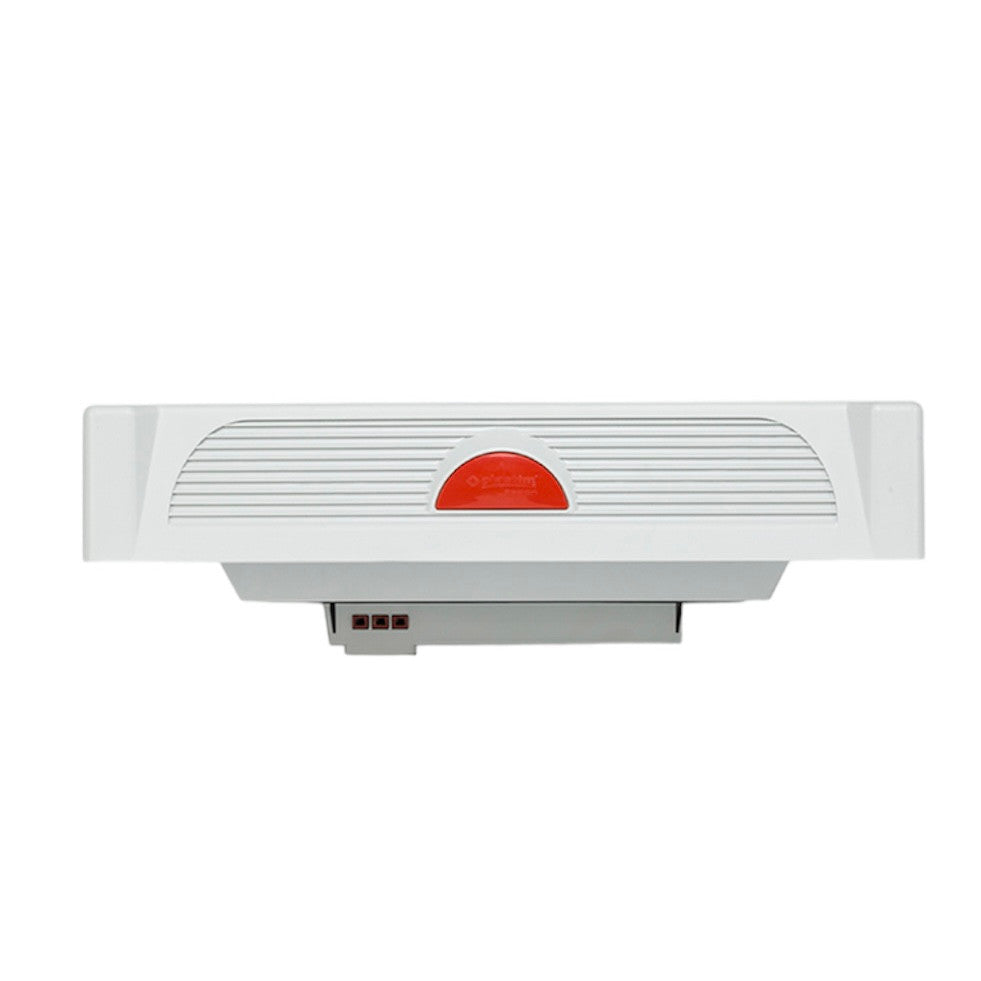

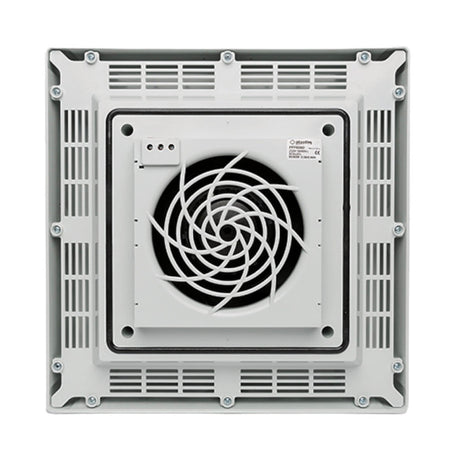

Fan in casing for installation on the roof of the electrical substation, PTS4000, PLASTIM (Türkiye)

This fan is intended for use in a microclimate system in a distribution board or automation panel and is typically used with a PTVT or PTHVT thermostat. It is installed on the roof of the cabinet, allowing excess hot air to be extracted from the cabinet volume as efficiently as possible.

Even though the fans have the same external dimensions, they differ in terms of air volume and noise level.

  • External dimensions: 364x364x107 mm
  • Installation size: 178x178 mm
  • Volume flow: 400 m3/h
  • Noise level: 62 (64) dB(A)
  • Bearing: Ball bearing
  • Lifespan: 50000 hrs
  • Operating voltage: 220-230VAC, 50/60Hz
  • Current consumption: 0.11/0.15 A
  • Nominal power: 25/32 W
  • Electrical connection: 3-pole 2.5 mm2 terminal block
  • Flow direction: Air flow is directed from the inside to the outside of the cabinet
  • Operating temperature: -10/+70 °C
  • Protection class: IP54
  • Plastic material: UL94 V0 ABS Flame retardant
  • Seal: Polyurethane seal
  • Color: RAL 7035
  • Weight: 2.6 kg
  • Installation: Quick attachment with clips

For automatic air exchange and temperature control with this fan, you will need either a simple bimetallic thermostat or a more complex temperature controller, both of which can be purchased on our website.
