Bimetal thermostat 0-60C NC, PTHT, Plastim

In stock - 489 items available
SKU: PTHT
Common price 104 kr incl. VAT

Online payment by card - after the order is completed you will be redirected to the payment gateway, the payment confirmation will be sent to your email

Cash on delivery - payment according to the payment regulations, you pay to the driver from the transport company

Bank transfer - you will receive a proforma invoice via email no later than the next business day, where you will find the account number that you enter when making payment.

On invoice - this payment option is available to partners who have entered into a framework agreement with our company.

​If you want to use the last 2 methods, call our manager and he will give you instructions on how to get an invoice with or without VAT.

The electrical appliances we provide meet high quality standards, have a 24-month warranty and meet all EU requirements.

In the event of a complaint, no fee is charged for returning goods.

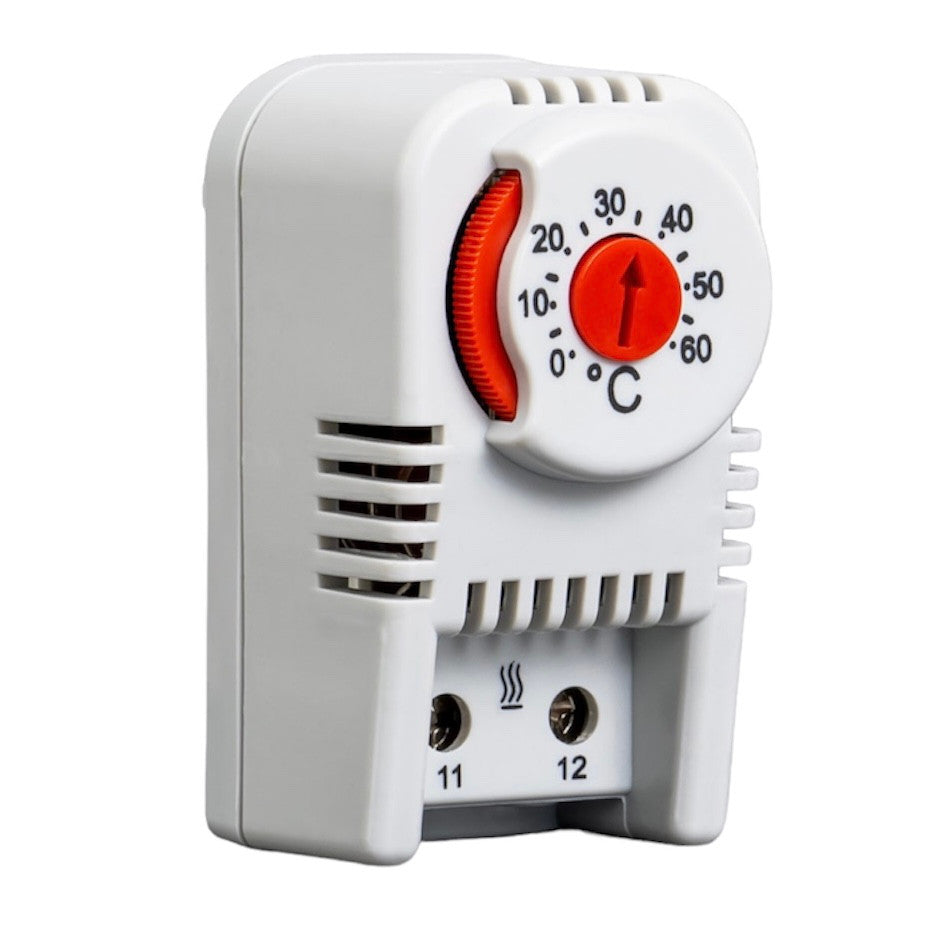

Thermostat for heat control. Adjustable temperature 0-60°C. For DIN rail. 1xNC, bimetallic thermostats Plastim.

Simple thermostat. 220(250) V AC. Bimetallic sensor with type, heating function. electrical connection with 2 terminals 2.5 mm2. installation position on 35mm DIN rail, cross rails, on installation panel.

Used to connect heating elements - radiators, panel heaters, underfloor heating, heating cables, fan heaters

Features

PTHT

Contact type

NC

Setting range

0-60°C

Color of potentiometer

RED

250V AC / 120V AC

10 (2) A

Sensor type

Bimetal

Contact type

Snap Action

Life

> 100,000

Electrical connection

2-pole terminal, screw terminals

Plastic material

UL94 V0 ABS Flame Retardant

Protection level

IP20

Operating temperature

-25 / +80 °C

Storage temperature

-45 / +80°C

Mounting

DIN rail 35mm

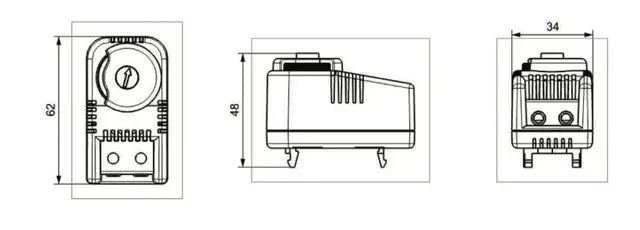

Dimensions HxWxD

61x34x38 mm

Weight

45g
