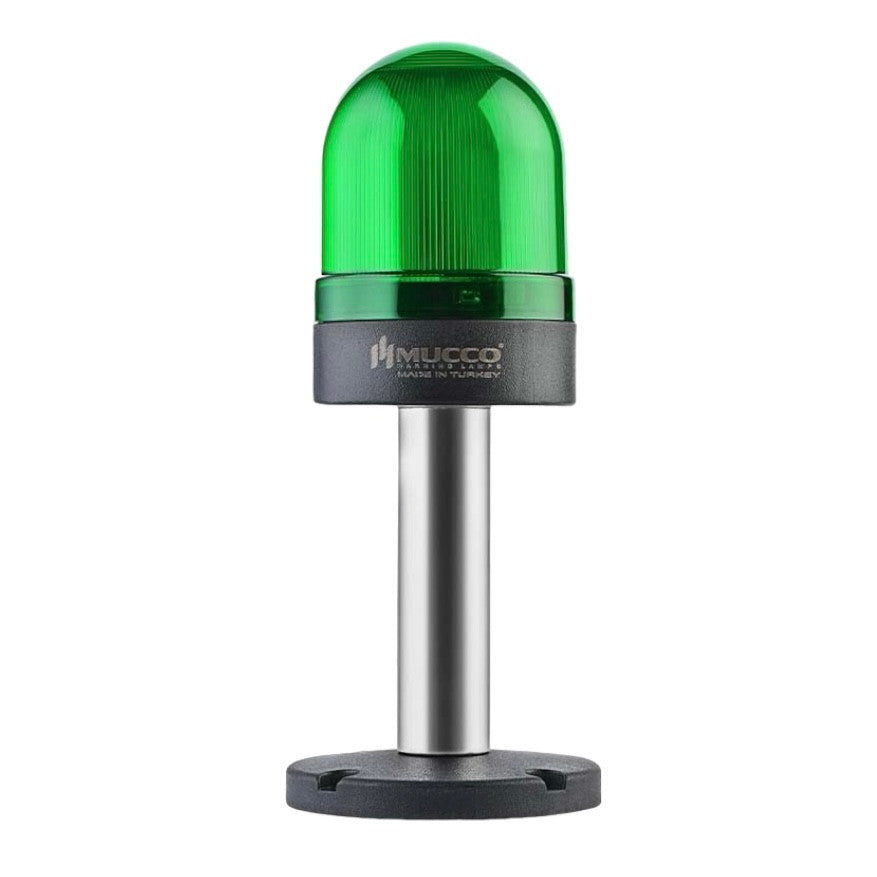

Green signal beacon series 70 with nut connection, 12-24, 40-250V AC/DC, manufacturer MUCCO (Turkey)
70 LENS OPTIONS
TYPE OF LIGHT Flashing
Buzzer options with buzzer
EXTENSION TUBE 10 cm
TECHNICAL DATA
- Category.
- Current strength:
24V/DC (without buzzer): 110 mA ±10
24V/DC (with buzzer): 10% 10V/DC (with buzzer): 150mA ±10% 40~250V AC/DC (without buzzer): 10/10 mA
40~250V AC/DC (without buzzer): 10/10 mA: 78mA ±10% 50-60 Hz
40~250V AC/DC (with buzzer): 60-60 Hz: 95mA ±10% 50-60 Hz
- Housing Material: ABS (body) + polycarbonate (lens)
- Lens colors: Red, green, yellow, blue, white

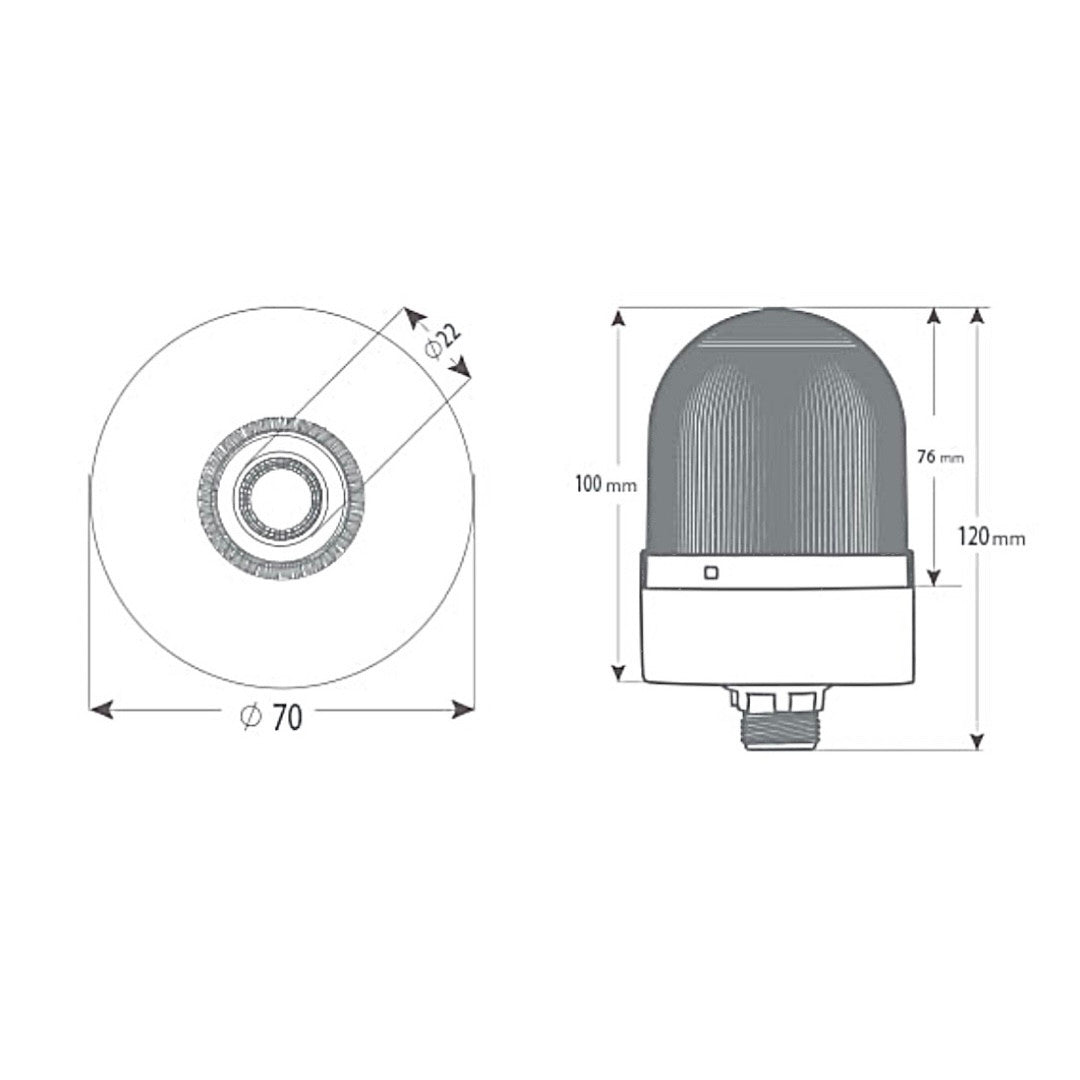

- Lens diameter: ø70 mm (nut M22 - connection)
- Light source: smd led LIGHT SOURCE: SMD LED
- Light mode: Steady, flashing
- Input response time: on/off: max. 10 ms
- Tone: (wired control): 1 tone
- Alarm: 104~107 dB at 1 m (3.3 ft)
- Connection: wired connection:
- Surface mounted, wall mounted Mounting type.
- Operating conditions: -20°C to +50°C (-4°F to +122°F)
- Lifespan: Duration: min. 50,000 hours
- Protection level: IP65
- Protection: Water, dust, heat and UV resistance
- Quality certificates and documents: ISO-9001, CE, RoHS2 and EAC
