Plastim

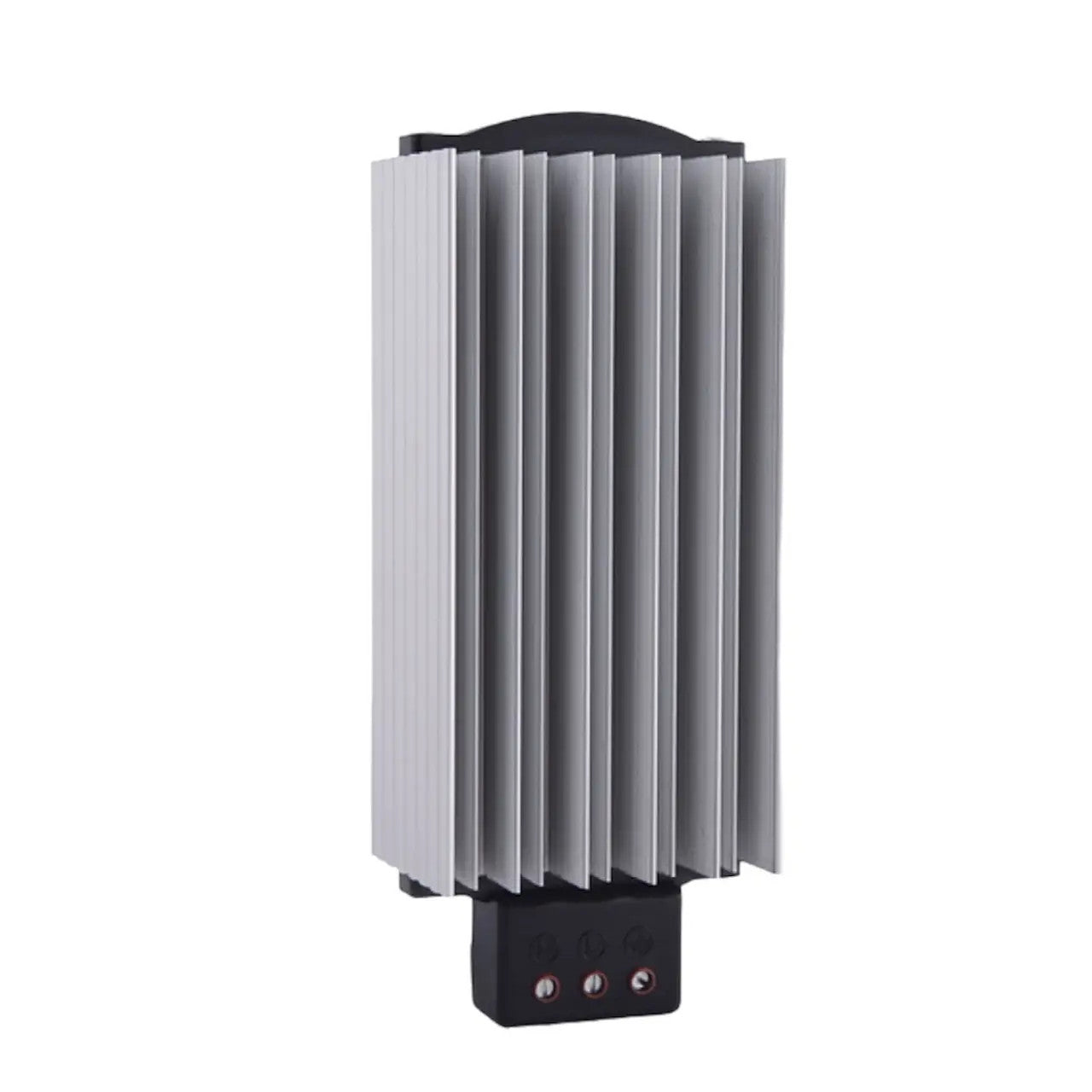

Heating element for electrical panels PTC 75W, PHT075, Plastim

In stock - 15 items available
SKU: PHT075
600 kr incl. VAT

Electric (PTC Body Heater, post-tensioning heater) switchgear heater with anodized aluminum heat sink and overcurrent protection, for DIN rail mounting with 75 watts, 110-220 volts AC or DC, PHT075, Plastim - made in Turkey.

  • Heating power: 75W
  • Operating voltage: 100-250V AC/DC
  • Maximum current: 4A
  • Heating element type: Self-regulating PTC resistor
  • Overcurrent protection: electronic thermal overload relay
  • Electrical connection: 3-pin NLE terminal
  • IEC protection class: Class II
  • Degree of protection: IP20
  • Operating temperature: -45 / +70 °C

  • Storage temperature: -45 / +70 °C

  • Heat sink: Aluminum profile, anodized

  • Mounting: 35 mm DIN rail

  • Mounting position: Best efficiency in vertical position

  • External dimensions: 178x70x59mm

  • Weight: 0.54 kg

Heating elements are used to maintain temperature and reduce humidity in electrical cabinets, automation cabinets, ATMs, payment terminals and other electronic devices. Previously, incandescent lamps were used for these purposes - but it is obvious that this method does not ensure compliance with modern stringent requirements for electrical equipment and electronics. Today, almost all manufacturers are switching to PTC heaters, which not only provide heating, but also guarantee safety and durability in operation.

All heaters are equipped with electronic protection against surface overheating, which provides an additional guarantee of safe operation.

Due to the high demands on the heating cabinets, Plastim has paid great attention to the selection of component suppliers. For example, the supplier of the PTC heaters is the same as Schneider Electric, and the terminal block for the electrical connection of all components is manufactured by the Italian company KORNER on special order. The plastic from which the block is made has a very important property: when heated, it not only retains its shape and does not deform, but also does not emit any odor and therefore does not release any harmful carcinogens into the atmosphere. Agree that this approach to the selection of suppliers distinguishes high-quality Plastim heaters from cheap Chinese analogues.

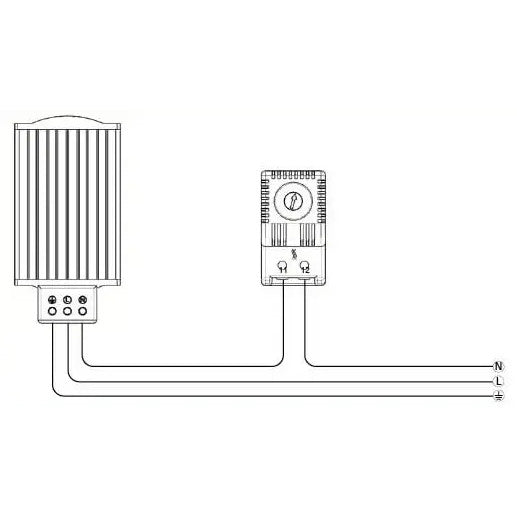

To ensure automatic temperature maintenance with this heater, you will need either a simple bimetallic thermostat or a more complex temperature controller. Both devices can be purchased on our website
